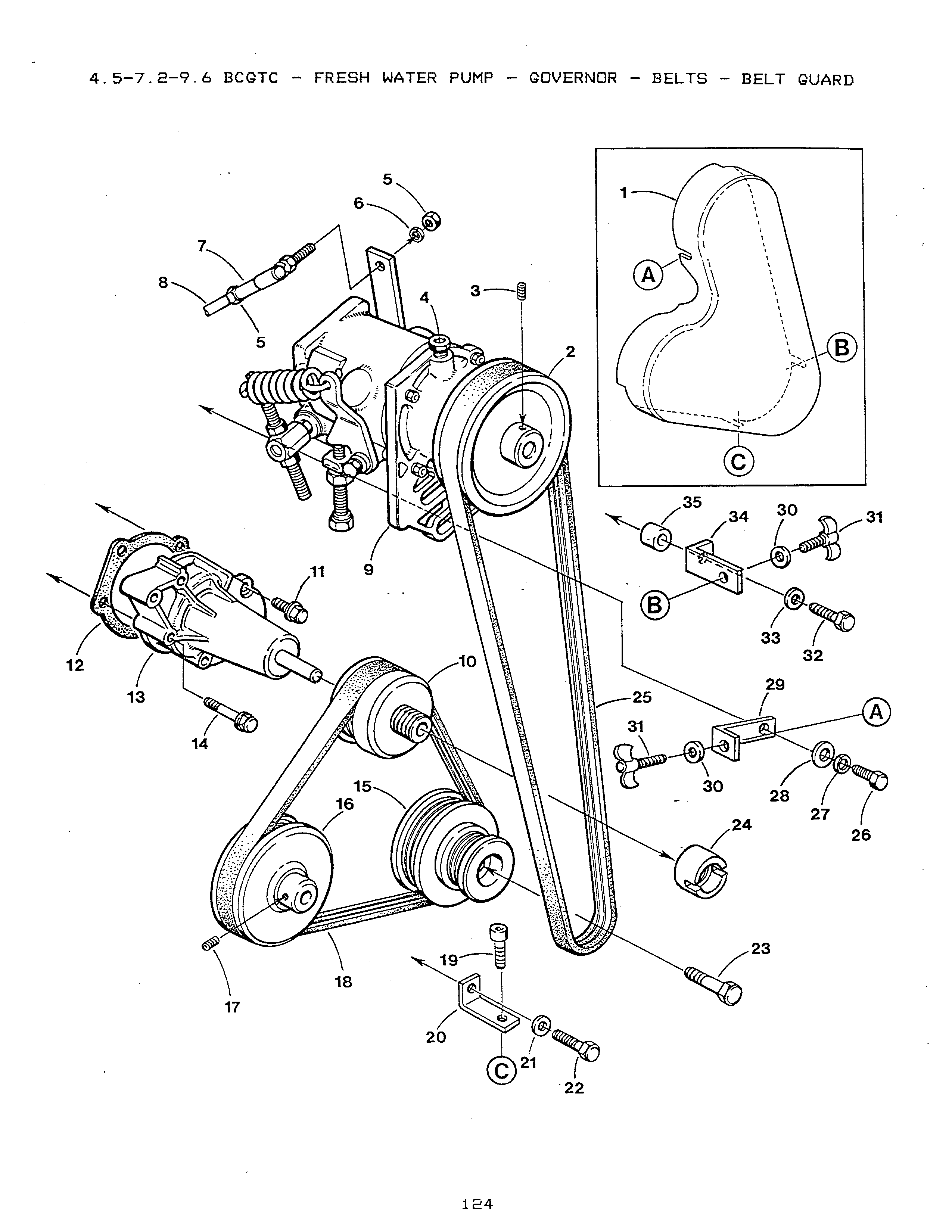

4.5-7.2-9.6 BCGTC-FRESH PUMP-GOVNR-BELTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GUARD

Part #: 042694

This part is no longer available.

Price not found
QTY:

Sold By: EA

2

On Diagram

PULLEY

Part #: 042771
$137.00
QTY:

Sold By: EA

3

On Diagram

PIN

Part #: 043585
$2.00
QTY:

Sold By: EA

4

On Diagram

PLUG 1/8 NPT SOCKET BRASS

Part #: 042896
$4.70
QTY:

Sold By: EA

5

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

7

On Diagram

BALLJOINT

Part #: 019364
$15.00
QTY:

Sold By: EA

8

On Diagram

ROD

Part #: 036423
$19.40
QTY:

Sold By: EA

9

On Diagram

GOVERNOR

Part #: 042822

This part is replaced with part number R042822

Price not found
QTY:

Sold By: EA

10

On Diagram

PULLEY

Part #: 042797
$96.80
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M 6x18 JIS 7 W/LW

Part #: 043065
$4.40
QTY:

Sold By: EA

12

On Diagram

GASKET

Part #: 043005
$11.70
QTY:

Sold By: EA

13

On Diagram

PUMP

Part #: 043809

This part is no longer available. Use part number 058450.

$551.90
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M 6x35 JIS 7 W/LW

Part #: 301590
$2.50
QTY:

Sold By: EA

15

On Diagram

PULLEY

Part #: 042795
$127.40
QTY:

Sold By: EA

16

On Diagram

PULLEY

Part #: 042774
$126.30
QTY:

Sold By: EA

17

On Diagram

SETSCREW 5/16NCx3/8 SOCKET

Part #: 011357
$2.80
QTY:

Sold By: EA

18

On Diagram

BELT

Part #: 042790

Before purchasing this belt, see Parts Bulletin 2002-1 for important information.

$21.60
QTY:

Sold By: EA

19

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

20

On Diagram

BRACKET

Part #: 042830
$4.20
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M 6x16 DIN 933

Part #: 017012
$0.50
QTY:

Sold By: EA

23

On Diagram

BOLT

Part #: 042980
$27.80
QTY:

Sold By: EA

24

On Diagram

NUT

Part #: 042800
$16.00
QTY:

Sold By: EA

25

On Diagram

BELT

Part #: 042798
$21.80
QTY:

Sold By: EA

26

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

28

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 042831

This part is no longer available.

$4.20
QTY:

Sold By: EA

30

On Diagram

WASHER

Part #: 033372
$0.40
QTY:

Sold By: EA

31

On Diagram

WINGSCREW 10-32 x 1/2

Part #: 033228
$6.10
QTY:

Sold By: EA

32

On Diagram

CAPSCREW M 6x30 DIN 933

Part #: 013590
$0.70
QTY:

Sold By: EA

33

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

34

On Diagram

BRACKET

Part #: 042578
$7.80
QTY:

Sold By: EA

35

On Diagram

SPACER

Part #: 021722
$4.30
QTY:

Sold By: EA
